Description

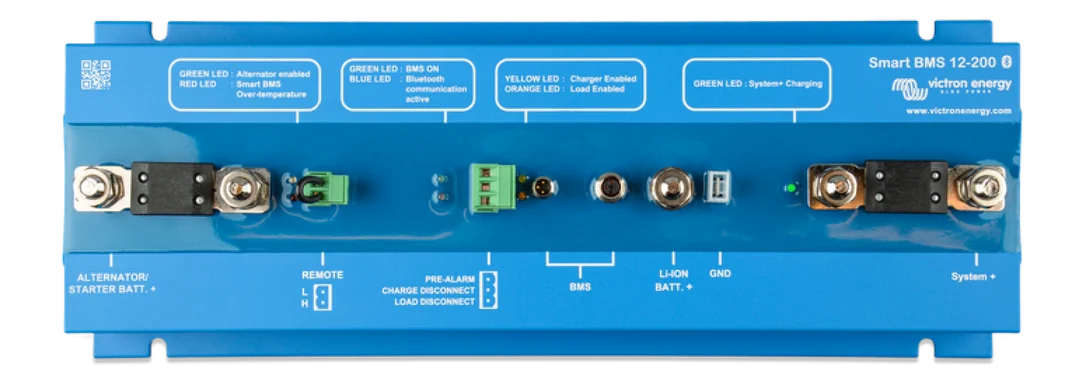

Victron Smart BMS 12/200 – for Victron 12,8V Victron LiFePO4 (LFP) batteries. Up to 5 batteries may be connected in parallel – BMS210055000
Product Information
The Smart BMS 12/200 is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats.
It combines a Current Limiter, Battery Combiner and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads and chargers to Smart Lithium batteries.
The Smart BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery cell voltage, high battery cell voltage or over temperature.
The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge.
The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off connector, to turn the BMS (and the system) off via a remote switch and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.
Features
• Alternator/Starter Batt+ port alternator and battery protection: The input current on the Alternator/Starter Batt+ port is electronically limited to approximately 90 % of the fuse rating. A 100 A fuse, for example, will therefore limit the input current to approximately 90 A and protects the lithium battery against excessive charge current and the alternator against overload (most 12V alternators will overheat and fail if running at maximum output during more than 5 minutes).
• System+ power port to connect loads and additional chargers: Can be used to either charge or discharge the lithium battery (i.e. via an additional charger, an inverter or inverter/charger connected directly to this port) with a maximum continuous current of 200 A in both directions. Can also be used as a load output, thus DC loads can be connected directly to this port.
• Remote on/off terminal: Use it to interrupt charging via the Alternator port and charging and discharging via the System+ port while keeping the BMS functionality active, or to stop charging from the Alternator port only. Alternatively use it as an on/off switch to turn off the system completely.
• Load and Charge disconnect output1): The Smart BMS 12-200 monitors and protects each individual battery cell within the battery and will disconnect the alternator, charge sources or DC loads in case of low/high battery cell voltage or high temperature.
• Pre-Alarm output: Can be used to drive a relay, LED or Buzzer to issue a warning signal before the BMS disconnects the batteries from the system.
• Bluetooth for monitoring and configuration via our VictronConnect app and with Instant Readout the possibility to read out the most important values in real time without the need to connect to the BMS, which enables diagnostics at a glance.
Datasheet-Smart-BMS-12-200-EN
Smart_BMS-en
Manufacturer Part Number: BMS210055000
