Description
Suitable for use in the hull side. Satin anodized aluminum frame. “Smoke” coloured opening pane. Clamp fixing ensures that no fasteners are visible.

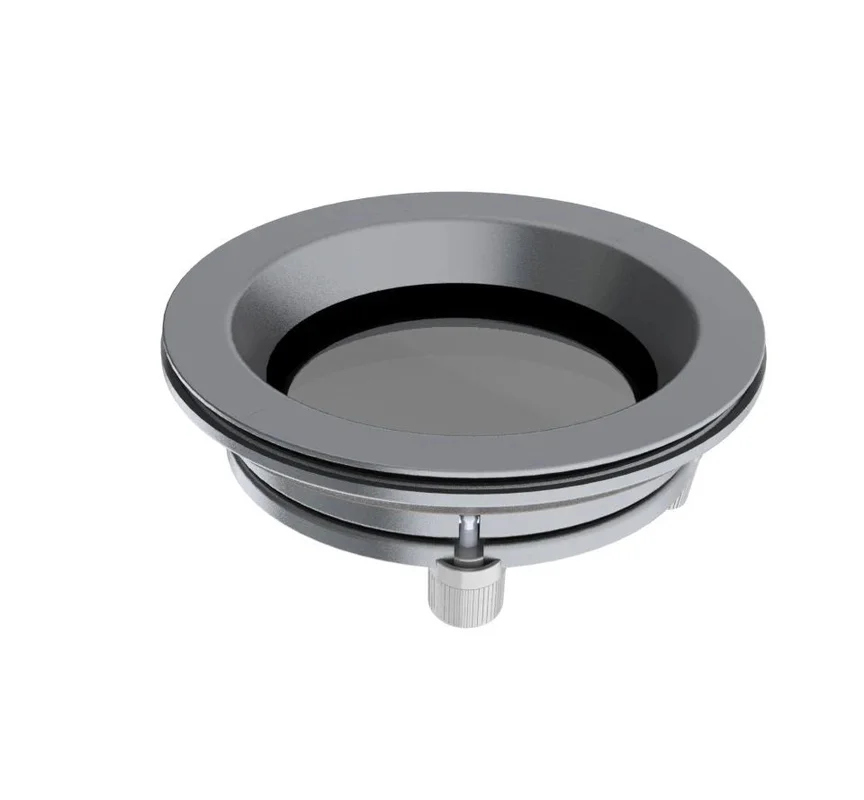

Heavy duty portholes!These portholes are suitable for use in the hull side. The 10mm ‘smoke’ coloured opening pane is set in satin anodized aluminum frame. Black and white powder coated frames are optional. The clamp fixing ensures that no fasteners are visible from either inside or outside. The portholes can be fitted in a surface with a minimum thickness of 2mm and a maximum thickness of 18mm. As standard a mosquito screen is supplied. A fixed version of each opening porthole is also available.
PW211 has the following specifications:
Specifications
| Material | Aluminium |
| Material | Aluminium |
| Type mosquito screen | HOR2113 |
| Type mosquito screen | HOR2113 |
| CE mark | AI |
| CE mark | AI |
| Shape | Round |
| Shape | Round |
| Opening pane | Framed |
| Opening pane | Framed |
| Cut-out diameter (inches) | 7 11/16 |
| Diameter (inches) | 8 11/16 |
| Cut-out diameter (mm) | 196 |
| Cut-out diameter (mm) | 196 |
| Diameter (mm) | 220 |
| Diameter (mm) | 220 |
Support & manuals
DoC Porthole PWInstallation and user manual Portholes PL, PM, PW, PX, PZ
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
