Description

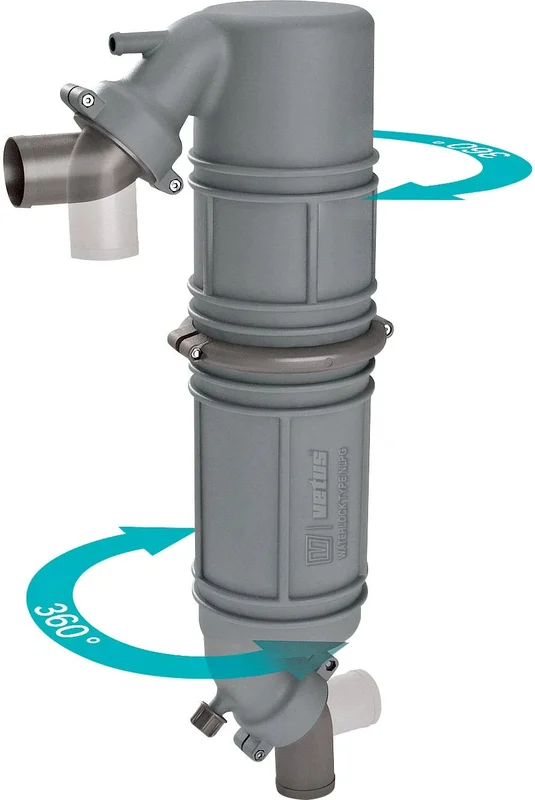

Combines the functions of a muffler and gooseneck. Saves installation time and space while maintaining the essential qualities of a good exhaust the functions of a muffler and gooseneck saves installation time and space while maintaining the essential qualities of a good exhaust system with impressively negligible back pressure. The gooseneck prevents water backfilling the exhaust while the muffler creates additional water mixing to further reduce the exhaust noise.
Specifications
Specifications
| Function | Muffler + Gooseneck |
| Function | Muffler + Gooseneck |
| Capacity (litres) | 3 |
| Capacity (litres) | 3 |
| Capacity (gallons) | 0.8 |
| Inlet hose connection diameter (mm) | 45 |
| Inlet hose connection diameter (mm) | 45 |
| Inlet Hose connection diameter (inch) | 1 3/4 |
| Outlet Hose connection diameter (mm) | 45 |
| Outlet Hose connection diameter (mm) | 45 |
| Outlet Hose connection diameter (inch) | 1 3/4 |
| Length (mm) | 110 |
| Length (mm) | 110 |
| Length (inches) | 4 5/16 |
| Width (mm) | 110 |
| Width (mm) | 110 |
| Width (inch) | 45/16 |
| Height (mm) | 494 |
| Height (mm) | 494 |
| Height (inch) | 19 29/64 |
| Position of the waterlock | Vertical |
| Position of the waterlock | Vertical |
| Heavy Duty | No |
| Heavy Duty | No |
| Rotatable hose connections | Yes |
| Rotatable hose connections | Yes |
| Rotatable body parts | No |
| Rotatable body parts | No |
Support & manuals
Installation manual Goose neck NLPG
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
