Description

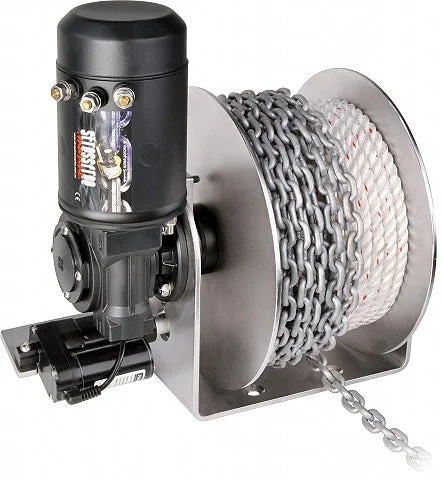

- Capstans with drum for rope-chain
- AISI 316 stainless steel base and drum
- IP67 watertight motor
- Anodized Aluminium gearbox
| SF MINI | 500 W | 4 – 6 m | 13 – 20 ft |
| SF MINI EW | 500 W | 4 – 6 m | 13 – 20 ft |
| SF MIDI | 1400 W | 6 – 7 m | 20 – 23 ft |
| SF MAXI | 1400 W | 7 m + | 20 ft + |
| SF MIGHTY | 1700 W | 9 m + | 30 ft + |
The indication may vary according to the boat type
Supplied accessories standard
| Contactor units | Board instrument to weigh/drop the anchor, it comes with a thermomagnetic breaker and push-button to activate the Free fall device. |
|||||||||
|
Optional accessories
|
Roller 4″ |
Bow Roller 6″ |
Stainless steel |
|
UP/DOWN |
Foot |
Handheld |
Radio remote |
| Standard version | SF MINI 500 | SF MINI 500 FF |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | 12 V |
| Maximum working load | 195 Kg 430 lb |
195 Kg 430 lb |
| Ø Drum | 250 mm 9″ 27/32 |
250 mm 9″ 27/32 |
| Weight | 16,5 Kg 36.4 lb |
18,3 Kg 40.3 lb |
DRUM CAPACITY:
75 (70 FF) metres of 8mm nylon plus 6 metres of 6mm shortlink chain
OR
100 (80 FF) metres of 6 mm double braid eye spliced to 5 metres of 8mm nylon and 6 metres of 6mm shortlink chain
NB: The amount of chain can be lenghtened or shortened to meet individual needs. In these situations the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate.
Dimensions
SF MINI 500 /MINI 500 FF
Ø 250 mm (Ø 9″ 27/32)
Dimensions in mm (inches)
Supplied accessories standard
| Contactor units | Board instrument to weigh/drop the anchor, it comes with a thermomagnetic breaker and push-button to activate the Free fall device. |
|||||||||
|
Optional accessories
|
Roller 4″ |
Bow Roller 6″ |
Stainless steel |
|
UP/DOWN |
Foot |
Handheld |
Radio remote |
