Description

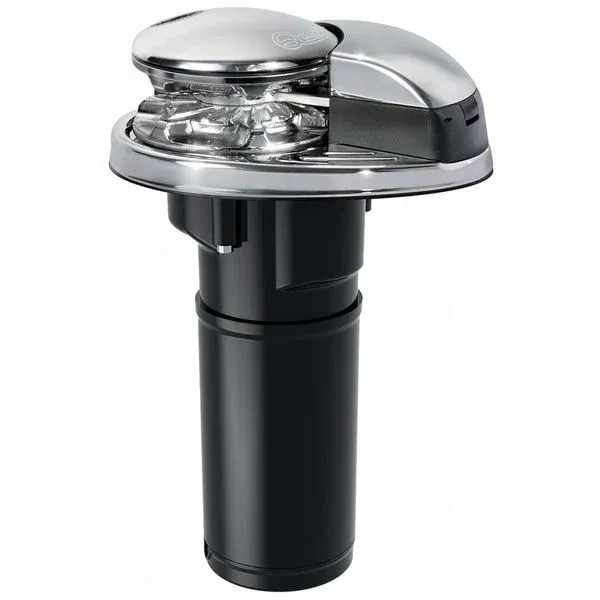

Quick DP2L 770 12V 350W vertical windlass for boats from six to eight meters (20-26ft). The Quick FSDP2L060006A00 windlass has a stainless steel AISI 316 base and BHC construction with a rope and chain on a single gypsy. Other features includean integrated sensor and magnet for chain counter, a manual Free-Fall system, motor watertight to IP66 and a BHC material gearbox. Chain: 6mm DIN 766, 6mm ISO. Rope: 1/2″, 12.7mm. Gypsy OD: 105mm (4-9/64″)
Key Features
Vertical windlasses
Stainless steel Aisi 316 base and BHC
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever and inspection lid
Motor watertight to IP66
BHC material gearbox
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Boat Size | 6 to 8 metres in length |
| Gypsy Size | 6mm |
| Brand | Quick |
| Series | Prince DP2L |
| Model | DP2L 770 |
| Voltage | 12V DC |
| Wattage | 350W |
Dimensions DP2L
Manufacturer Part Number: FSDP2L060006A00
