Description
- Capstans with roller for strap
- AISI 316 stainless steel and anodized aluminium
Multifunctional capstans
The models of the PT series are special electrical capstans designed to weigh anchor onboard of pontoon or boats with a little space available. It can be easily installed either above or below the deck. PT models can also be used as fishing capstans or to lift the tender onboard of yachts. The roller can retrieve strip 48 mm large, 7.5 m long.

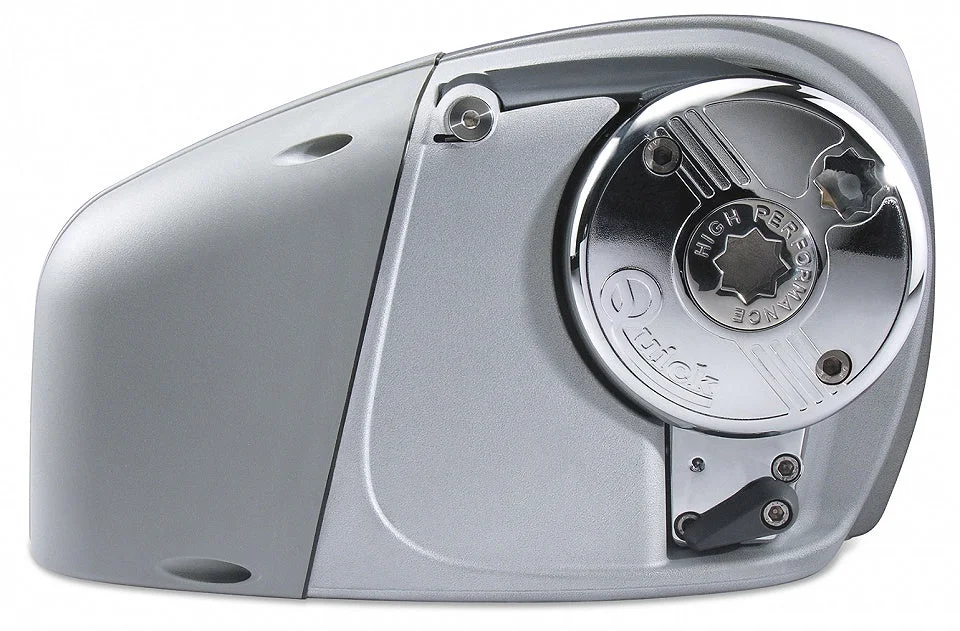

PT multipurpose capstan
The PT model is available in the windlass version, complete with bow-roller on request or in a tender-recovery version, complete with reel for lines snap-hook.
Supplied accessories standard
| Contactor units | ||||||||||||||||||
|
Optional accessories
|
Flat strap with |
UP/DOWN |
Foot |
handheld |
Radio remote |
| Standard version | PTG 1000 |
| Motor power | 350 W |
| Motor supply voltage | 24 V |
| Maximum pull | 750 Kg / 1653 lb |
| Maximum working load | 250 Kg / 551 lb |
| Working load | 100 Kg / 220 lb |
| Current absorption @ working load (1) | 16 A |
| Maximum chain speed (2) | 21,5 m/min/ 70.5 ft/min |
| Maximum chain speed @ working load (2) | 18,3 m/min / 60 ft/min |
| Weight | 10,2 Kg / 22.5 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with rope 6 mm |
Dimensions
PTG 1000
Dimensions in mm (pollici)
Supplied accessories standard
| Contactor units | ||||||||||||||||||
|
Optional accessories
|
Flat strap with |
UP/DOWN |
Foot |
handheld |
Radio remote |
