Description

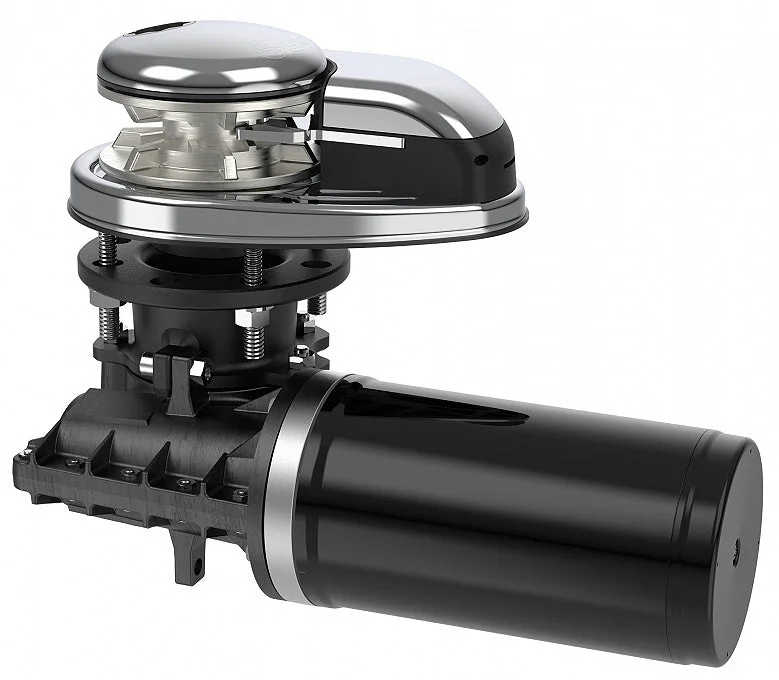

- Vertical windlasses
- Aisi 36 Stainless steel base and anodized aluminium in hard oxide
- With and without drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Inspection cover
- IP66 Watertight motor
- Technopolymer gearbox
| DP1 | 300 W 12V | 5 – 7,5 m | 16 – 25 ft |
| DP1 | 500 W 12V | 5 – 8,5 m | 16 – 28 ft |
| DP1 | 500 W 24V | 5 – 8,5 m | 16 – 28 ft |
| DP1 | 500 W HS 12V | 5 – 7,5 m | 16 – 25 ft |
| DP1 | 500 W HS 24V | 5 – 8,5 m | 16 – 28 ft |
The indication may vary according to the boat type and the anchor-rode type
| Gypsy and Drum | Ø 90 mm / 3″ 35/64 |
| GYPSY | 6 mm | 1/4″ | |
| CHAIN | 6 mm | 6 mm | 1/4″ |
| DIN 766 | ISO | BBB |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.
Supplied accessories standard
| Contactor units |
| MODELS | T6415-12 | T6415-24 |
| 300 W | 12 V | |
| 500 W | 12 V | 24 V |
| 500 W HiSpeed | 12 V | 24 V |
Nylon handle
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
| Standard version | DP1 500 / 500 D | |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 660 Kg | 1455 lb | |
| Maximum working load | 200 Kg 441 lb |
220 Kg 485 lb |
| Working load | 65 Kg 143 lb |
70 Kg 154 lb |
| Current absorbtion @ working load (1) | 80 A | 40 A |
| Maximum chain speed (2) | 25,2 m/min 82,7 ft/min |
25,2 m/min 82,7 ft/min |
| Maximum chain speed @ working load(2) | 18,5 m/min 59,7 ft/min |
19,3 m/min 63,3 ft/min |
| Weight – DP1 – [without drum] | 8,3 Kg | 18 lb | |
| Weight – DP1 D – [with drum] | 9,3 Kg | 20 lb |
| HI-SPEED version | DP1 500 HS / 500 D HS | |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 600 Kg | 1323 lb | |
| Maximum working load | 170 Kg 375 lb |
200 Kg 441 lb |
| Working load | 65 Kg 143 lb |
70 Kg 154 lb |
| Current absorbtion @ working load (1) | 100 A | 50 A |
| Maximum chain speed (2) | 39 m/min 128 ft/min |
39 m/m 128 ft/min |
| Maximum chain speed @ working load (2) | 28,5 m/min 93,5 ft/min |
28 m/min 91,9 ft/min |
| Weight – DP1 – [without drum] | 8,3 Kg | 18 lb | |
| Weight – DP1 D – [with drum] | 9,3 Kg | 20 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 6 mm chain |
Dimensions
Supplied accessories standard
| Contactor units |
| MODELS | T6415-12 | T6415-24 |
| 300 W | 12 V | |
| 500 W | 12 V | 24 V |
| 500 W HiSpeed | 12 V | 24 V |
Nylon handle
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
