Description
This Holt Lazy Jack Kit HT-LAZY02 offers a basic lazy jack solution for yachts from 32′ to 38’.
It includes all the blocks, lacing eyes, and cleats required to install the system yourself. The included instructions help you to correctly position the components.
The screws and rivets are not included in this but can be included if you choose the HT-LAZY02FAST KIT below – please see all available kits in the table below.
The Rope length required is 70m and is not included.
The recommended rope is 6mm Pre-Stretch 12 Plait Polyester.

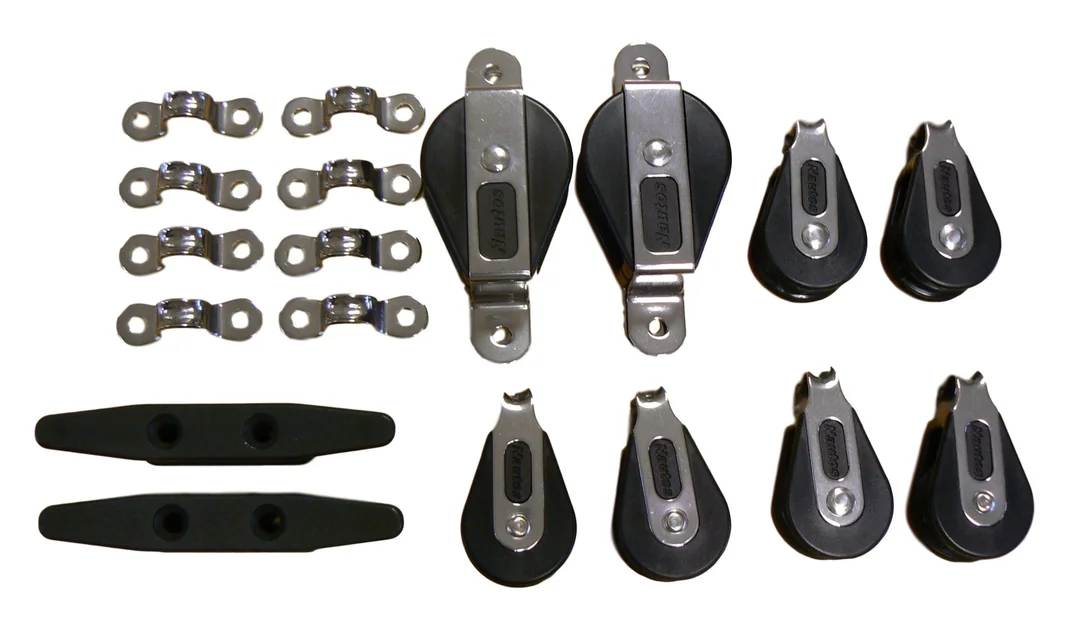

Contents Included
- 2 x 39mm Ball Bearing Foot Blocks
- 6 x 28mm Fixed Head Ball Bearing Blocks
- 8 x Stainless Steel Lacing Eyes
- 2 x 95mm Aluminium Cleats
The normal RRP for buying these components individually is £158.82 so this Kit works out at a 58% discount, and a 26% discount off the RRP for the Kit itself.
| THE ENTIRE LAZY JACK RANGE – CLICK IMAGES OR DESCRIPTION TO PURCHASE | |||
|---|---|---|---|
| Image | Contents | Part No | |
| Lazy Jack Kit – Up To 31′ – Basic Hardware Only without Camcleats, Fairleads and Fastenings |
|
HT-LAZY01 | |
| Lazy Jack Kit – Up To 31′ – Hardware Only without Fastenings |
|
HT-LAZY01HARD | |
| Lazy Jack Kit – Up To 31′ – FULL KIT Inc Fastenings |
|
HT-LAZY01FAST | |
| Lazy Jack Kit – 32′ To 38′ – Basic Hardware Only without Camcleats, Fairleads and Fastenings |
|
HT-LAZY02 | |
| Lazy Jack Kit – 32′ To 38′ – Hardware Only without Fastenings |
|
HT-LAZY02HARD | |
| Lazy Jack Kit – 32′ To 38′ – FULL KIT Inc Fastenings |
|
HT-LAZY02-FAST |
Fitting Instructions:
- Attach the cheek block (A) at a height corresponding to 75% (3/4) of the total mast height.
- Around the gooseneck high install the cleat (B) at a clear lateral area of the mast where the rope comes straight from the return block.
- The first eye strap (C) should be attached at least 2.5′ away from the mast. Then divide the remaining space and install the rest proportionally. Eye straps can be attached with screws or rivets.
Tips for using Lazy Jacks:
Adjusting tension
At the dock, raise the mainsail and tighten the mainsheet to lower the boom. Tighten the jack line, leaving 2–3 inches of slack. This should ensure that the lazy jack doesn’t interfere with the sail while sailing, but collects it when the halyard is released.
Avoiding snagging
To prevent the lazy jacks from snagging the spreader ends, you can use a shock cord. Attach a length of shock cord to each side of the sail, dead end it near the gooseneck, and run it to blocks suspended from wires.
Hoisting the mainsail
When hoisting the mainsail, make sure the boat is facing into the wind. Steer carefully and use the breeze to keep the sail in the pocket between the lazy jacks. If a batten gets snagged, stop hoisting and lower the sail.
Rope length
To calculate the required rope length, use the formula 2.75 x P x 2, where P is the distance from the gooseneck to the top of the mast.
