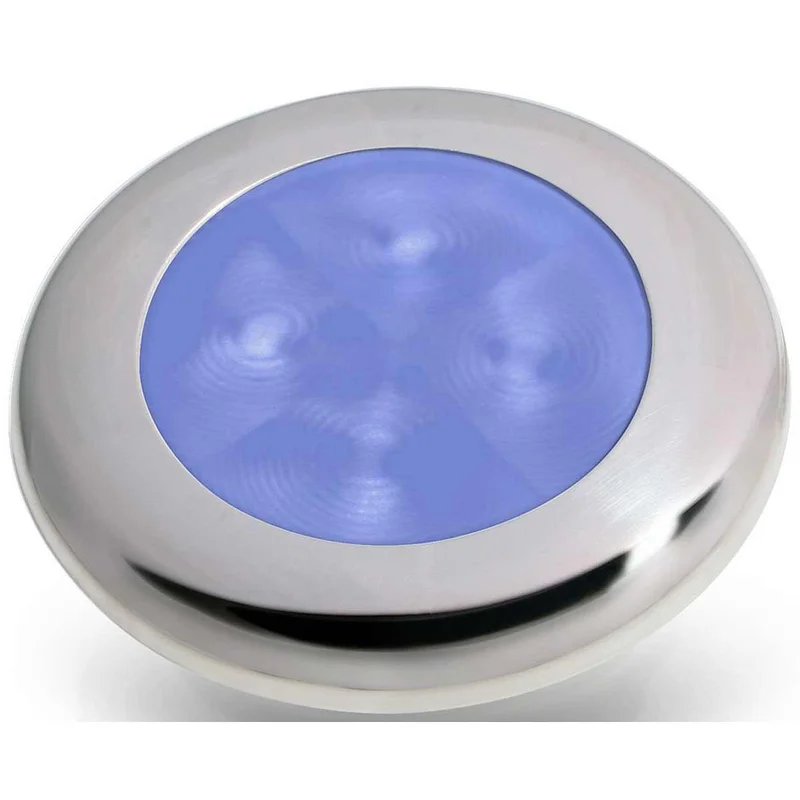

Hella Slim Line blue LED courtesy lamps are attractive, energy efficient lighting for interior and exterior use. Hella marine round LED courtesy lights can be installed almost anywhere on board.
Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A at 12V). This provides safer installation into light weight materials where the heat of incandescent lights may cause damage to the surrounding structure.
Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.
| Case Colour | Stainless Steel |
| Material | UV Resistant Enhanced Impact Acrylic with Stainless Steel 316 Rim |
| Supplied With | Pre-wired with 120mm of single core marine cable & stainless steel mounting screws |
| Bulb | LED |
| Primary Construction | Stainless Steel 316 |
| Switched | No |
| Bulb | LED |
| Light Colour | Blue |
| Brand | Hella |
| Series | Slim Line |
| Model | 2XT 980 502-227 |
| Voltage | 12V DC |
| Wattage | 0.5W |
| Cut Out | 50mm (1.97″) |
| Amps | |
| Approvals | CE |
| Depth | Above Surface: 8mm (0.32″), Behind Surface: 13mm (0.51″), Overall: 21mm (0.83″) |
| Weight | 50g including cable |
| Diameter | 72mm (2.83″) |
| Country of Origin | New Zealand |
| Warranty | 5 Years |
hella slim line led courtesy lamp instruction sheet
Manufacturer Part Number: 2XT 980 502-227
