Description
The Hella EuroLED 115 series of cabin lights are designed to provide the same light output as a 20W incandescent bulb, but at just 4.5W. The low power LED bulb offers power and heat reductions on board, while the internal electronics protect against reverse polarity, electrical surges and over-voltage to ensure long term reliability. The EuroLED 115 is supplied with a 0.5m length of twin core marine grade electrical cable and can be fully controlled and dimmed via PWM dimming products such as ASAP Part Number 719195.

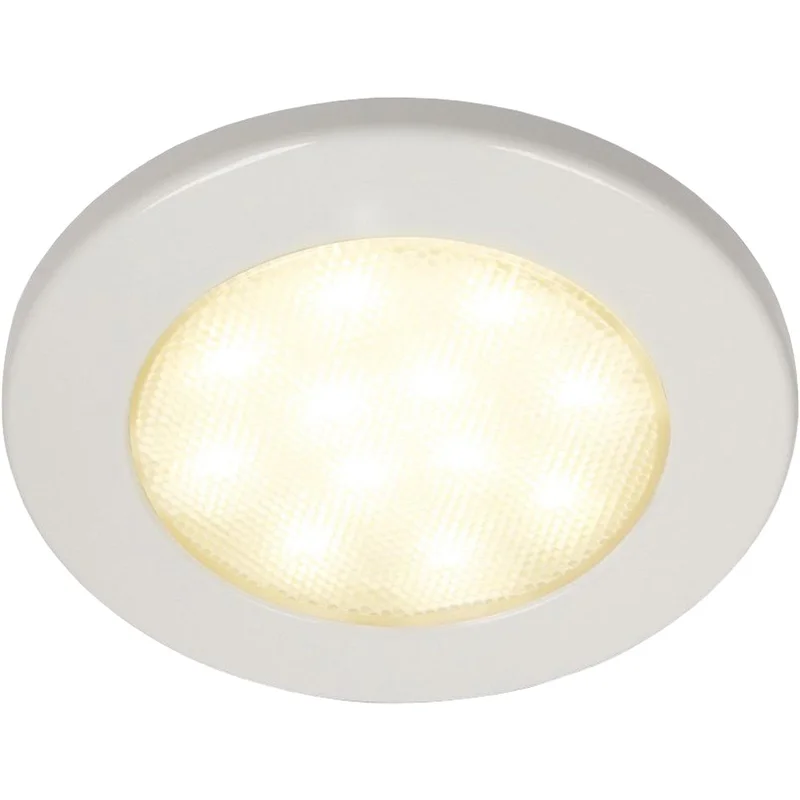

The 2JA 980 820-102 model features a UV resistant enhanced impact acrylic lens with a white plastic rim. The light is installed into a 90mm x 22mm recess with 3 screws which are then concealed by the housing. It provides warm white (3000K) light on either 12V or 24V systems. The light is completely sealed (IP 67) and is covered by Hella’s 5 year warranty for faults in material, components or workmanship. They are aimed to give a real ‘fit and forget’ solution to interior lighting.
| Case Colour | White |
| Material | Acrylic lens with plastic rim |
| Bulb | LED |
| Primary Construction | Plastic |
| Switched | No |
| Bulb | LED |
| Light Colour | Warm White |
| Brand | Hella |
| Series | EuroLED 115 |
| Model | 2JA 980 820-102 |
| Voltage | 10V – 33V DC |
| Wattage | 4.5W |
| Amps | < 0.37A at 12V, <0.18A at 24V |
| Approvals | CE |
| Depth | Recess: 22mm |
| Diameter | Overall: 115mm, Recess: 90mm |
| Warranty | 5 Years |
EuroLED 115 Instruction Sheet
Manufacturer Part Number: 2JA 980 820-102
