Description

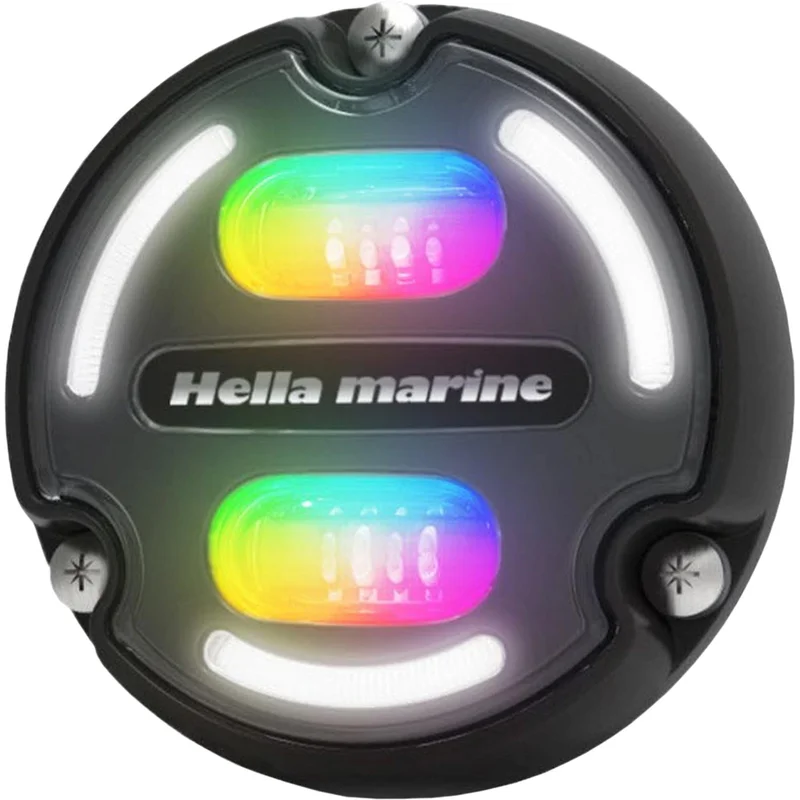

Hella Apelo A2 underwater lights are designed purely for underwater use. Hella 2LT 016 148-102 features RGB LEDs, with a black marine grade bronze housing and a white lens. The Apelo RGB underwater light allows you to take complete control and choose any colour you wish, in addition to the Blue/White settings and toggle to select constant or strobe light. Simply connect your lamps to an RGB lighting controller.
Apelo A2 series lights feature Edge Light, which consists of 3 LED strips circling the outside of the lamp. It illuminates your transom with a unique effect whilst launching, retrieving or sitting on the boat lift. Light up during wash down, flushing engines or when loading gear. Edge Light shines bright enough in daylight without the brilliant intensity of the main underwater light, so your friends will not be blinded.
– Vibrant blue, intense white illumination & Apelo RGB for complete control of the colour spectrum.
– Edge Light technology
– Optical Intelligence: Wide horizontal illumination with a narrow vertical angle for spectacular effect.
– Completely sealed & electronically protected.
– Robust surface mount design.
– Advanced thermal management ensuring ongoing protection & no damage by operation out of the water.
– Suitable for steel, fiberglass, timber & composite hulls.
| Case Colour | Bronze |
| Material | Housing: marine grade bronze, Lens: high-strength, UV-resistant, optical Grilamid nylon |
| Bulb | LED |
| Bulb | LED |
| Light Colour | Daylight White (5000K) & RGB |
| Brand | Hella |
| Series | Apelo |
| Model | A2 |
| Voltage | 12V & 24V DC (9V – 32V DC), Spike protected to: +500V, Reverse Polarity protected to: -700V |
| Wattage | RGB: < 30W, Edge Light: < 3W |
| Amps | RGB: < 2.5A at 12V, < 1.25A at 24V & Edge Light: < 0.25A at 12V, < 0.13A at 24V |
| Approvals | CE & ISO 8846 (Ignition Protection) |
| Depth | 140mm |
| Length | 2.5m (8ft) of 5-Core Marine Cable |
| Weight | 0.65kg |
| Diameter | OD: 95mm (3.74″), Cable Hole: 15mm (0.59″) |
| Dimensions | Screw Hole PCD: 83.5mm (3.28″) |
| Warranty | 5 Years |
hella apelo datasheethella apelo underwater surface mounting advisory
Manufacturer Part Number: 2LT 016 148-102
