Description

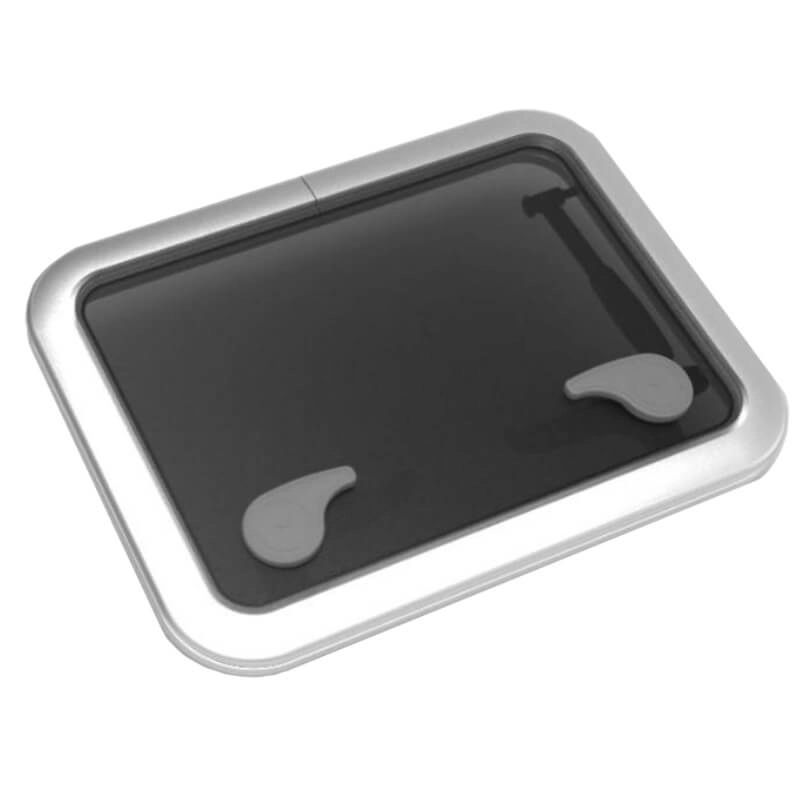

Goiot Opal Boat Hatches
Goiot hatches are made using only the highest quality materials. They will offer fully watertight seal that can be achieved with an easy installation process. The invisible aluminium hinges and low frame height offer a sleek design to complement your boat.
Specifications:
| Size | Weight (kg) | Cut-out dimensions (mm) | Overall dimensions (mm) | Cut-out radius (mm) | Acrylic thickness (mm) | Lid height (mm) |
|---|---|---|---|---|---|---|
| T30 | 5.6 | 457 x 327 | 511 x 381 | 42.5 | 10 | 29 |
| T40 | 6.2 | 421 x 421 | 475 x 475 | 42.5 | 10 | 29 |
| T44 | 6.7 | 442 x 442 | 496 x 496 | 42.5 | 10 | 29 |
| T50 | 5.4 | 507 x 377 | 561 x 431 | 42.5 | 10 | 29 |
| T54 | 7.2 | 507 x 392 | 561 x 446 | 42.5 | 10 | 29 |
| T60 | 7.9 | 507 x 507 | 561 x 561 | 42.5 | 10 | 29 |
