Description

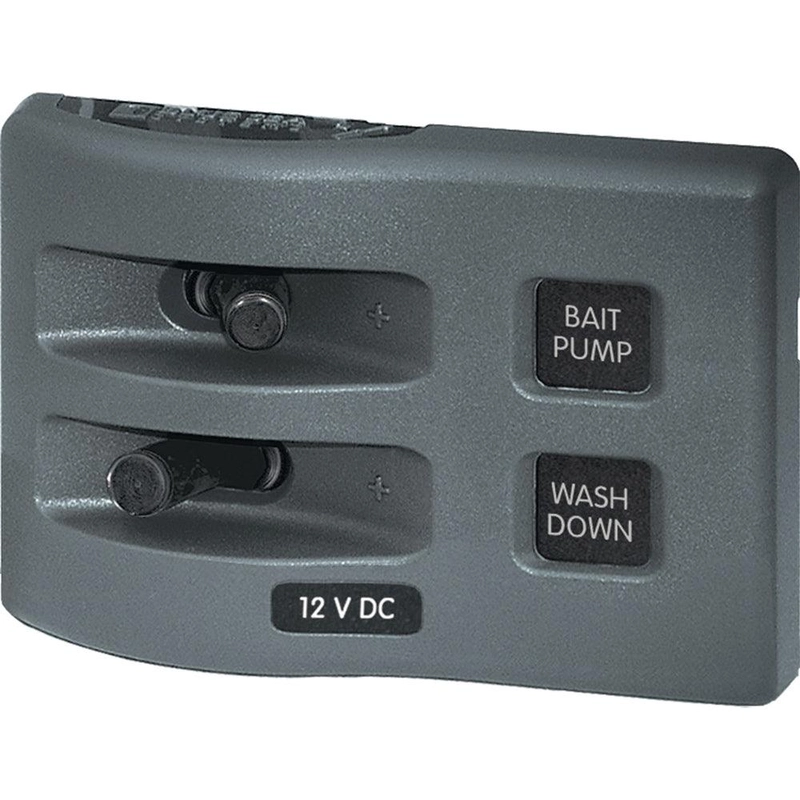

WeatherDeck® 12V DC Waterproof Switch Panel – 2 Position
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof:Waterproof
Positions: 2
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Material: Reinforced Polycarbonate
Height: 2.60″(66.04 mm)
Width :3.88″(98.55 mm)
Depth: 2.50″(63.5 mm)
Weight: 0.52lb (0.24 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Waterproof: Waterproof
- AC/DC: DC
- Max Breaker Quantity: 2
- Voltage: 12/24v
- Box Dimensions: 4″H x 6″W x 6″L WT: 0.45 lbs
- UPC: 632085043032
Owner’s Manual (pdf)
