Description

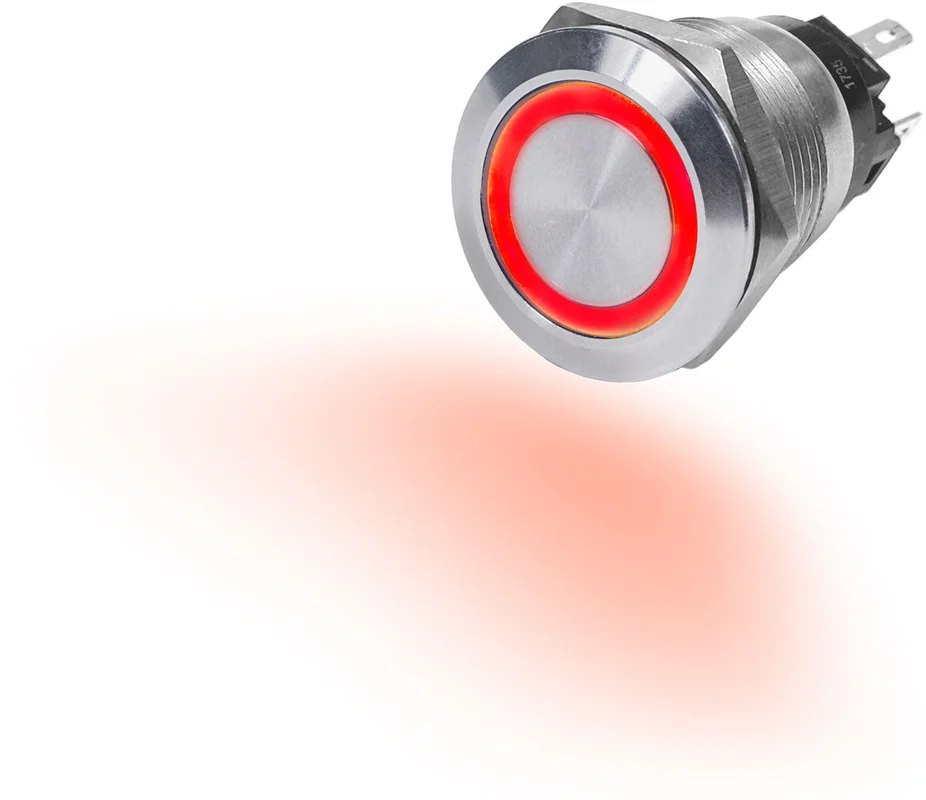

Blue Sea 10A Push Button LED Ring Switch Off-On Red
Model: 4162-BSS
- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
| Action | OFF-ON |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 70° C |
| Minimum Storage Temperature | -55° C |
| Maximum Storage Temperature | 85° C |
| Illumination | Independent — Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | ¾” (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 — 0.110inch Quick Connect terminals |
WARNING: Cancer and Reproductive Harm –
Brand: Blue Sea Systems
UPC: 632085041625
Model Number: 4162-BSS
Weight: 0.200000
